| 荷載 | 工作級別 | 滑輪倍率 | 鋼絲繩直徑 | 吊鉤鉤號 |
| 3.2t | 2M | 4:1 | 6mm | RSN1.6 |
| 5t | 2M | 8mm | RSN2.5 | |
| 6.3t | 1Am | 8mm | RSN2.5 | |
| 10t | 2M | 11mm | RSN4 | |
| 16t | 2M | 15mm | RSN6 | |
| 20t | 1Am | 15mm | RSN6 | |
| 25t | 3M | 4:2 | 15mm | RSN12 |
| 32t | 1Am | 6:2 | 15mm | RSN10 |
| 40t | 2M | 15mm | RSN16 | |
| 50t | 1Am | 15mm | RSN16 |

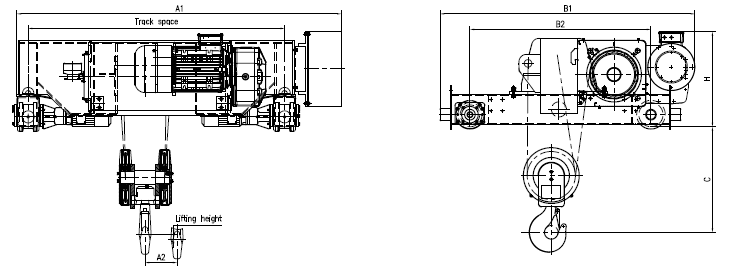

| 額定載荷Ton | 起升高度m | 技術參數(50HZ) | 產品尺寸 | 凈重kg | |||||||||
| 起升速度m/min | 起升電機kw | 運行速度m/min | 運行電機kw | A1 | A2 | B | B2 | 軌距 | H | C | |||
| 3.2 | 6 | 5:0.8 | 3.2:0.45 | 5~20 | 0.64 | 1885 | 100 | 1130 | 850 | 1400 | 403 | 540 | 526.7 |
| 9 | 1885 | 135 | 1400 | 535.7 | |||||||||
| 12 | 2185 | 180 | 1700 | 560.7 | |||||||||
| 5 | 6 | 5:0.8 | 6.1:1 | 5~20 | 0.64 | 1885 | 90 | 1130 | 850 | 1400 | 403 | 577 | 555.7 |
| 9 | 1885 | 135 | 1400 | 568 | |||||||||
| 12 | 2185 | 180 | 1700 | 597.2 | |||||||||
| 6.3 | 6 | 5:0.8 | 6.1:1 | 5~20 | 0.64 | 1885 | 90 | 1130 | 850 | 1400 | 403 | 577 | 555.7 |
| 9 | 1885 | 135 | 1400 | 568 | |||||||||
| 12 | 2185 | 180 | 1700 | 597.2 | |||||||||
| 10 | 6 | 5:0.8 | 9.5:1.5 | 5~20 | 0.96 | 1885 | 90 | 1337.6 | 1000 | 1400 | 541 | 650 | 732.6 |
| 9 | 1885 | 135 | 1400 | 768.8 | |||||||||
| 12 | 2185 | 180 | 1700 | 815.8 | |||||||||
| 16 | 6 | 5:1.2 | 20:5 | 5~20 | 0.64*2 | 1850 | 90 | 1690 | 1200 | 1400 | 630 | 700 | 1186 |
| 9 | 2150 | 135 | 1700 | 1305 | |||||||||
| 12 | 2450 | 180 | 2000 | 1498 | |||||||||
| 20 | 6 | 5:1.2 | 20:5 | 5~20 | 0.64*2 | 1850 | 110 | 1690 | 1200 | 1400 | 630 | 700 | 1186 |
| 9 | 2150 | 133 | 1700 | 1305 | |||||||||
| 12 | 2450 | 178 | 2000 | 1498 | |||||||||
| 25 | 6 | 0~4.9 | 38 | 5~20 | 0.96*2 | 2465 | 130 | 1842 | 1400 | 2000 | 841 | 877 | 1729.4 |
| 9 | 2865 | 150 | 2400 | 1877.9 | |||||||||
| 12 | 3165 | 180 | 2700 | 2002.2 | |||||||||
| 32 | 6 | 3.3:0.8 | 20:5 | 5~20 | 1.1*2 | 2465 | 0 | 1842 | 1400 | 2000 | 863 | 1059 | 1996 |
| 9 | 2865 | 0 | 2400 | 2115.6 | |||||||||
| 12 | 3165 | 0 | 2700 | 2268.6 | |||||||||
| 40 | 6 | 0~4.9 | 38 | 5~20 | 1.5*2 | 2711 | 0 | 1996 | 1500 | 2000 | 1030 | 1012 | 2816.5 |
| 9 | 2711 | 0 | 2000 | 2829.3 | |||||||||
| 12 | 3111 | 0 | 2400 | 2965.2 | |||||||||
| 50 | 6 | 0~4.1 | 38 | 5~20 | 1.5*2 | 2711 | 0 | 1996 | 1500 | 2000 | 1025 | 950 | 3011.2 |
| 9 | 3411 | 0 | 2700 | 3324.2 | |||||||||
| 12 | 3809 | 0 | 3100 | 3563.3 | |||||||||
